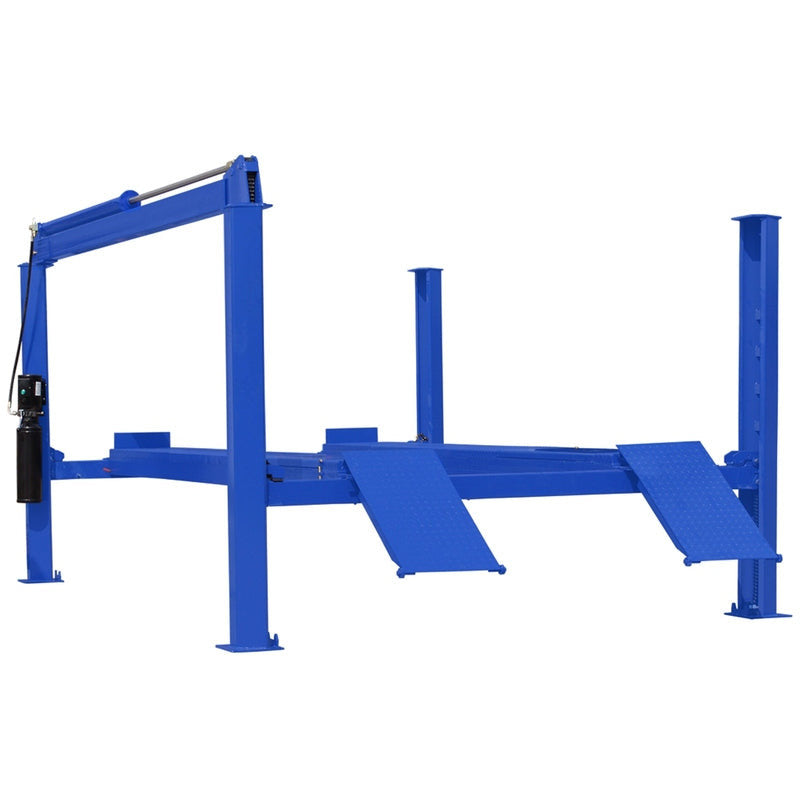

Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven
Tuxedo

Tuxedo FP14K 14,000 lb Four Post Lift - Chain Driven

17% off In stock · ships from nearest warehouse
$5,944 $7,199 Save $1,255
Contractor pricing: 2+ units −5% · 5+ units call for fleet quote
From $248/mo with financingSee terms →
Free freight — liftgate + curbside
Standard 12–25 business days
Express 5–15 days for $480
1-year warranty, extendable
Ships from 6 US warehouses
Spec sheet on every listing
First-order codeNEWCOMER5 — extra 5% off at checkout (about $297)
Business buyer? Section 179 may apply — ask your CPA. Net-30 available for approved business accounts.
Talk to a spec advisor(404) 618-2644
Email uscontact@yardandliftsupply.com
Quantity
Contractor pricing: 5% off each unit is applied at checkout on 2+ units.

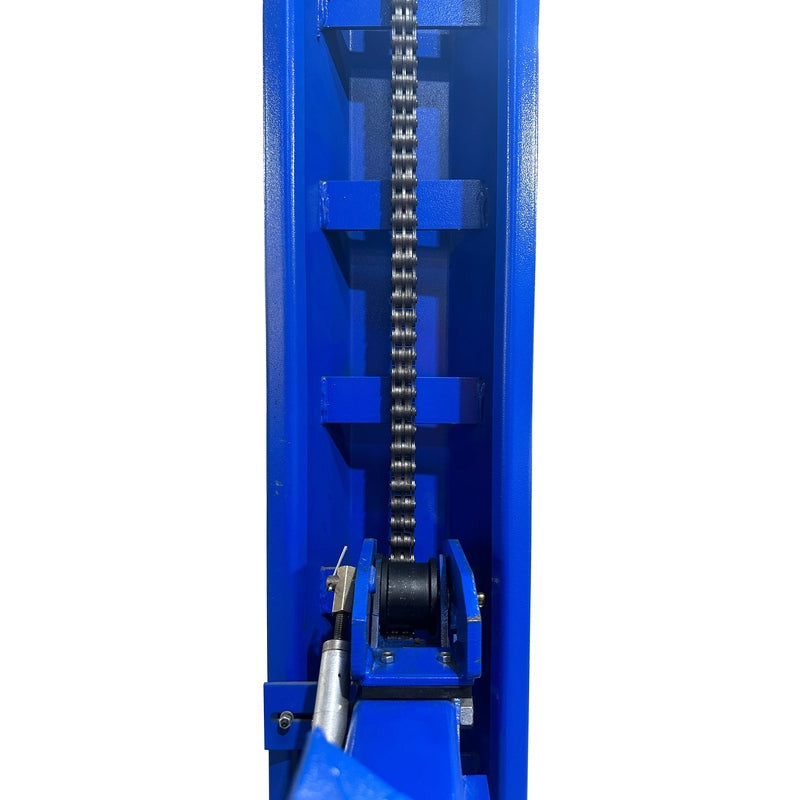

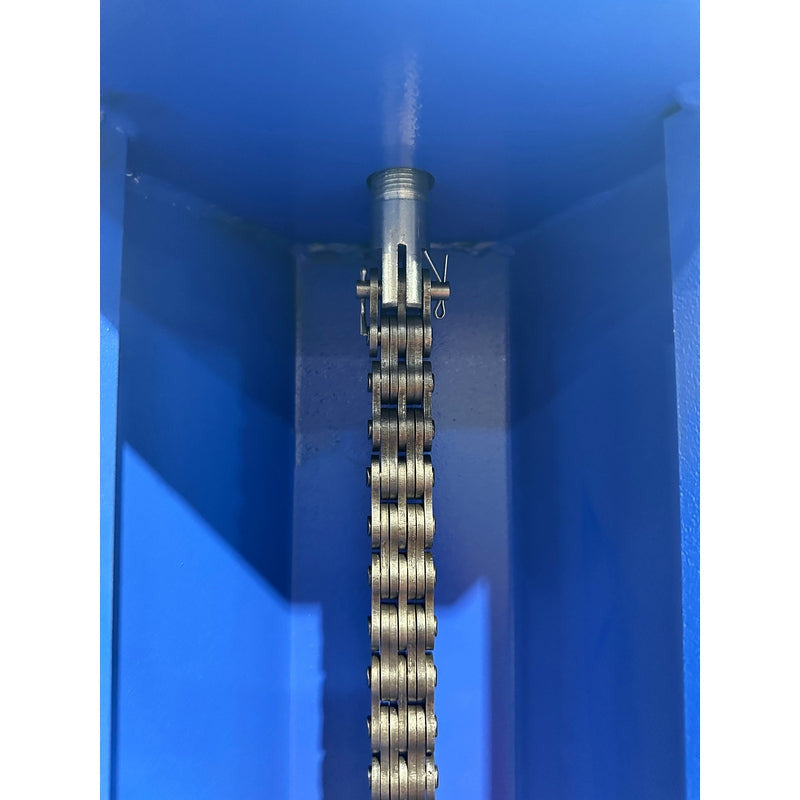

Tuxedo 14,000 lb Four Post Lift - Chain Driven These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel. Features 14,000 lbs Capacity Chain...Read full specs

Spec sheet & details

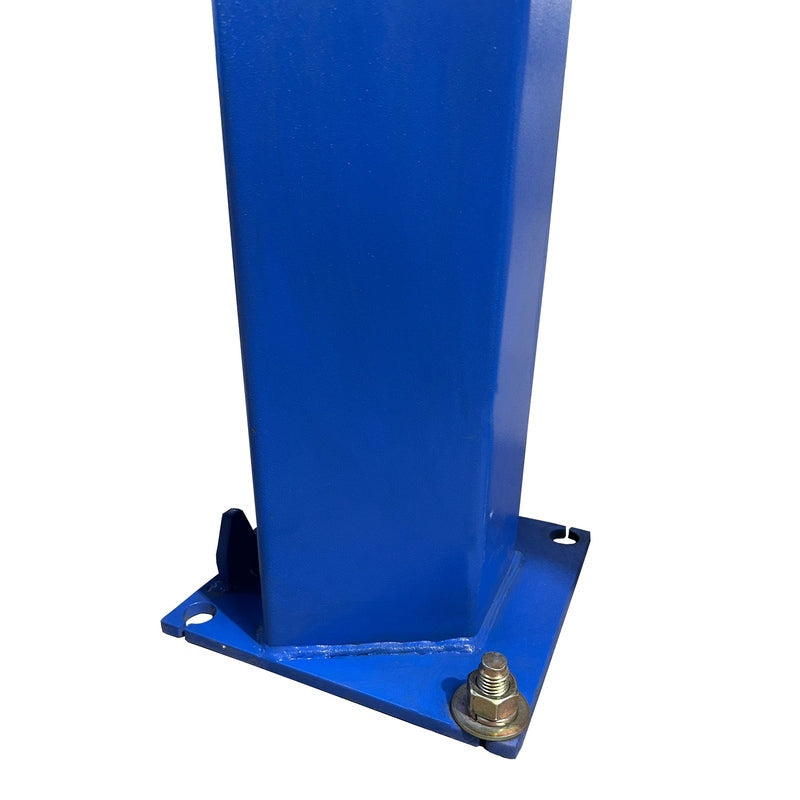

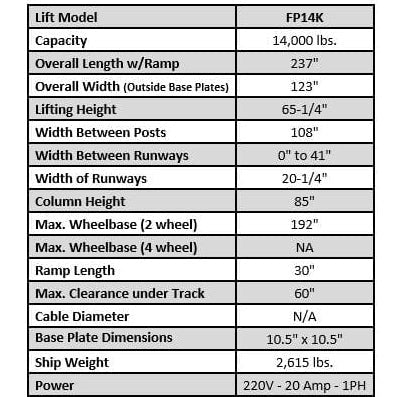

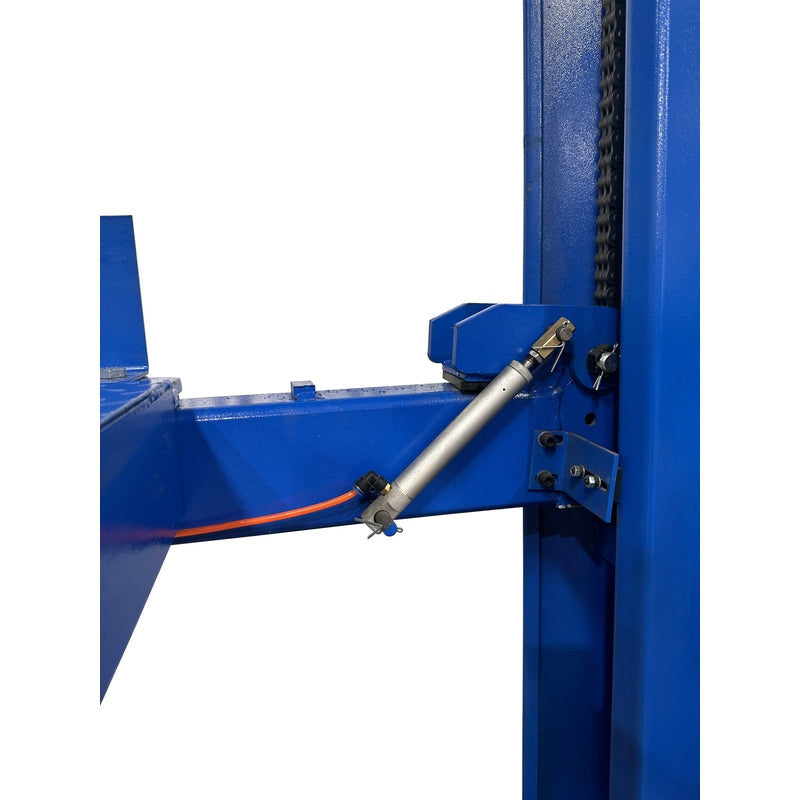

Tuxedo 14,000 lb Four Post Lift - Chain Driven These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel. Features 14,000 lbs Capacity Chain Driven 182 max wheelbase Single Point Pneumatic Lock Release Powder Coat Finish Specifications Capacity 14,000 lbs. Overall Length w/Ramp 237" Overall Width (Without Power Unit) 123" Overall Width (WithPower Unit) 129" Overall Height 99" Max Rise Height 65 - 1/4" MinHeight 7 - 1/2" Width Between Posts 108" LengthBetween Posts 187" Width Between Runways 41" Width of Runways 20" Max. Wheel Base 182" Ramp Length 30" Max. Clearance Under Runway 60" Drive-Thru Clearance 99" Base Plate 10-1/2" x 10-1/2" Power Requirement 220V-20 Amp Ship Weight 2,615 lbs. Min Bay Size 15x 24 Recommended RAJ-8K & Tuxedo Lift Combo Resources For more detailed information and guidance, you can download the following: Download Manual (PDF)
