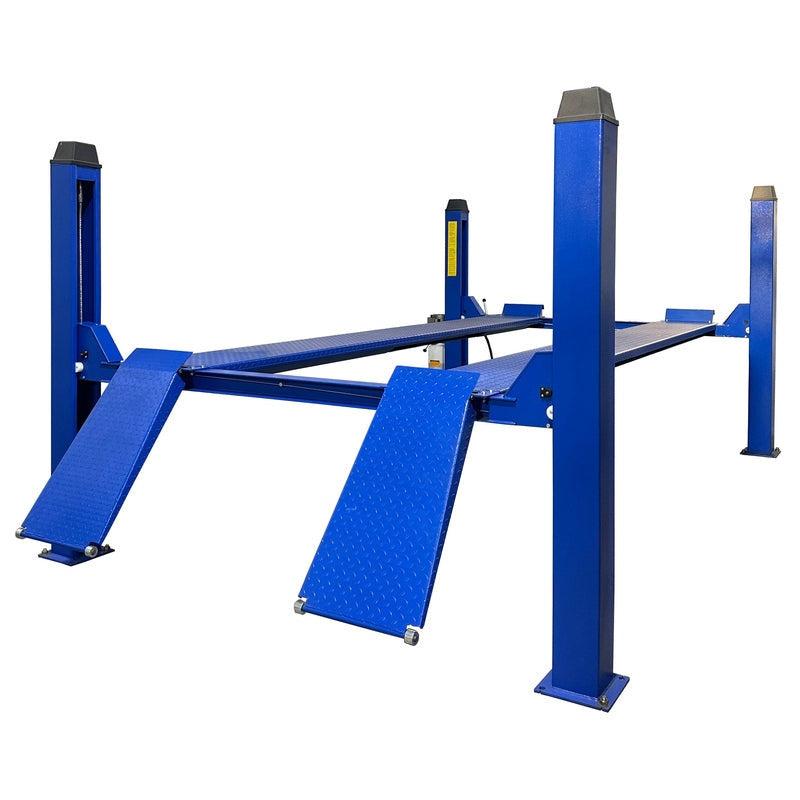

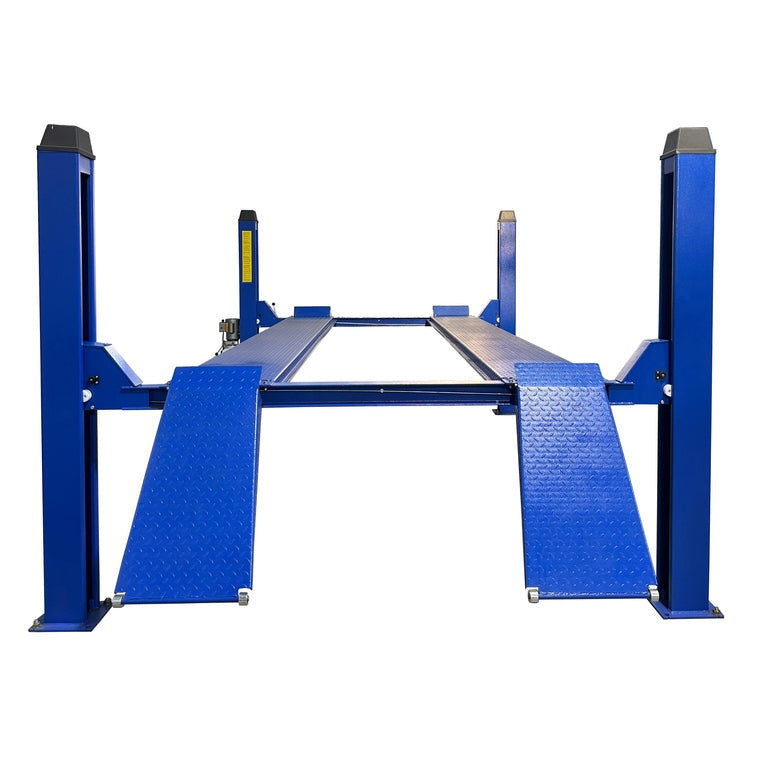

Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven
Tuxedo

Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven

17% off In stock · ships from nearest warehouse
$5,650 $6,799 Save $1,149
Contractor pricing: 2+ units −5% · 5+ units call for fleet quote
From $235/mo with financingSee terms →
Free freight — liftgate + curbside
Standard 12–25 business days
Express 5–15 days for $480
1-year warranty, extendable
Ships from 6 US warehouses
Spec sheet on every listing
First-order codeNEWCOMER5 — extra 5% off at checkout (about $283)
Business buyer? Section 179 may apply — ask your CPA. Net-30 available for approved business accounts.
Talk to a spec advisor(404) 618-2644
Email uscontact@yardandliftsupply.com
Quantity
Contractor pricing: 5% off each unit is applied at checkout on 2+ units.

Tuxedo 12,000 lb Four Post Lift - Cable Driven *Jack sold separately Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and...Read full specs

Spec sheet & details

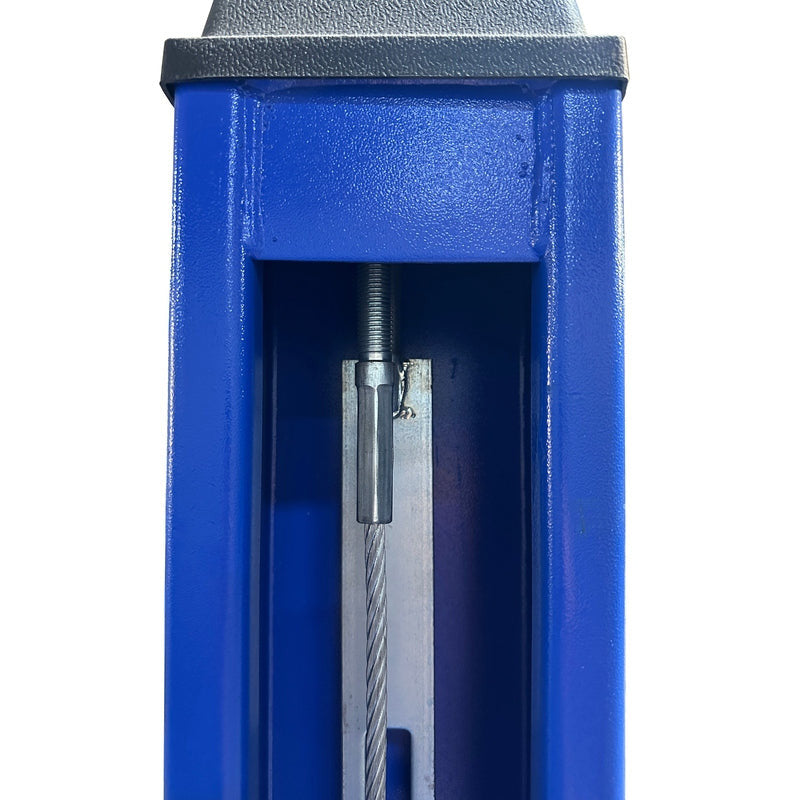

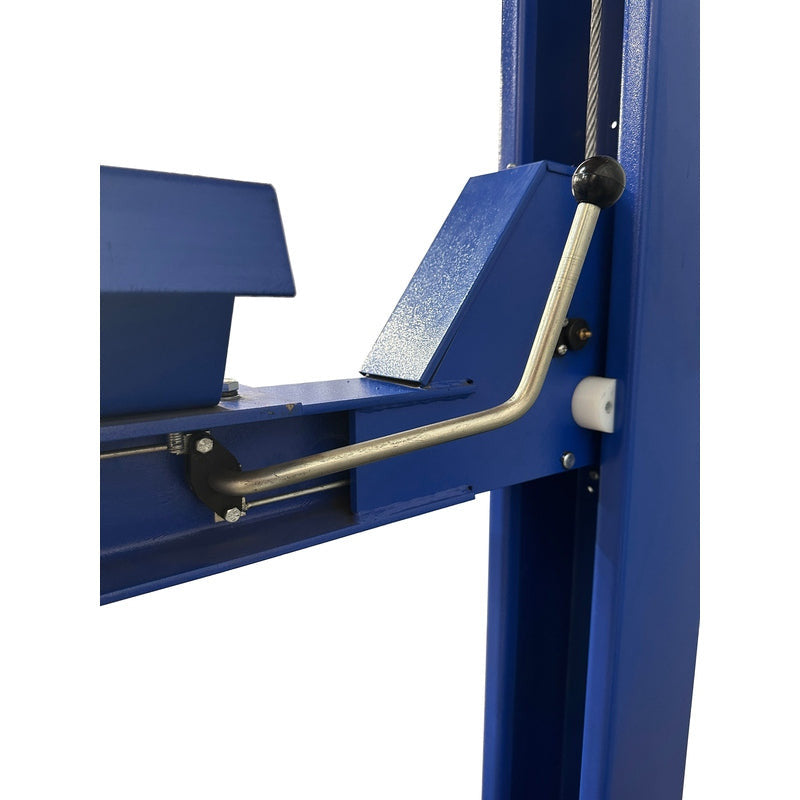

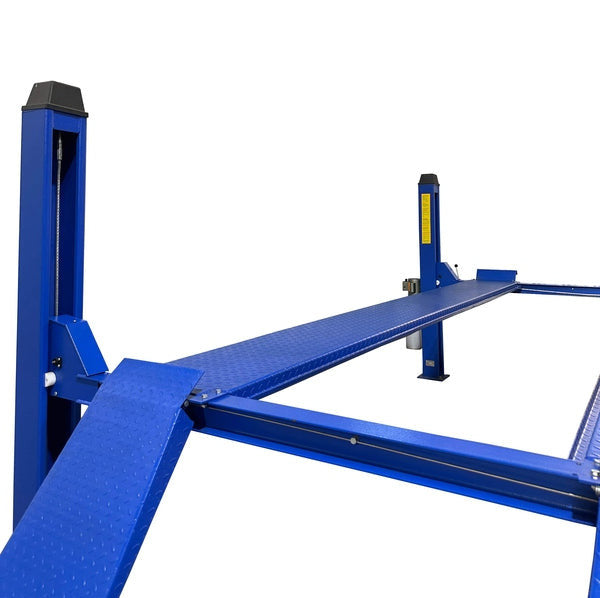

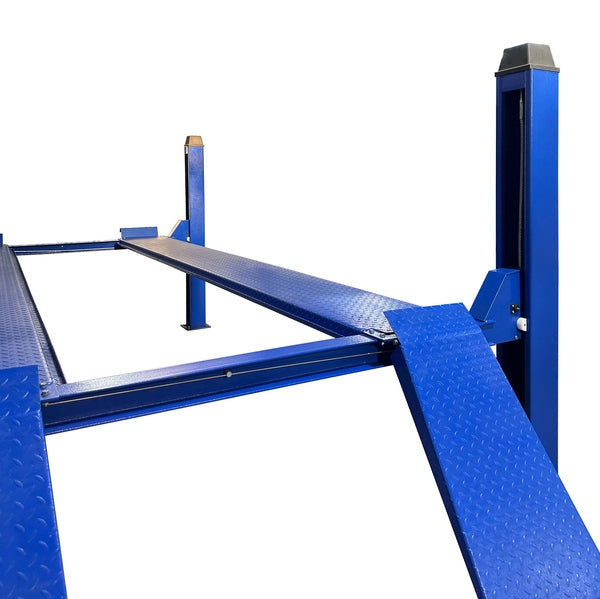

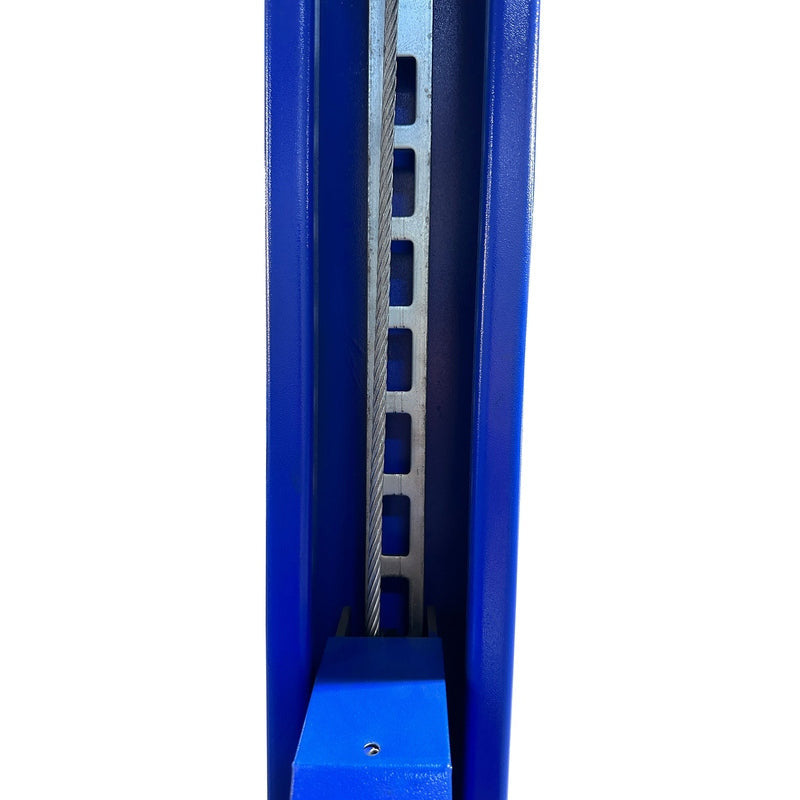

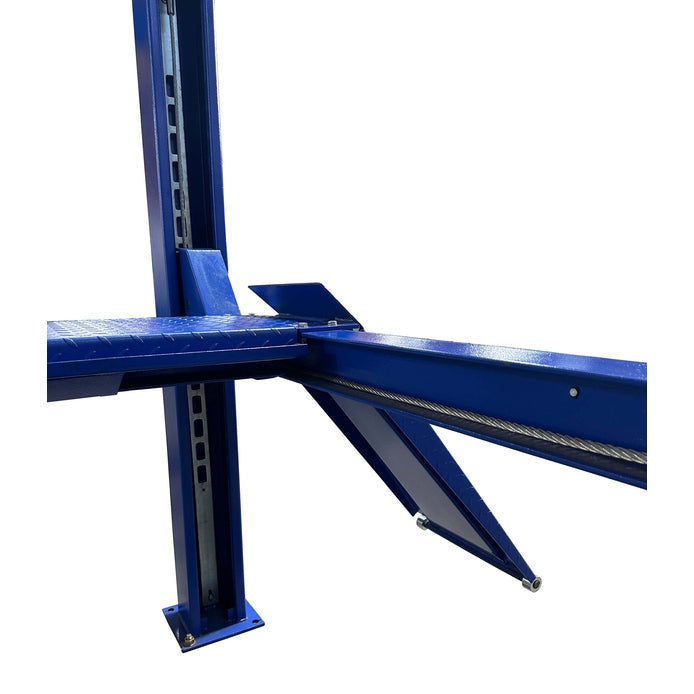

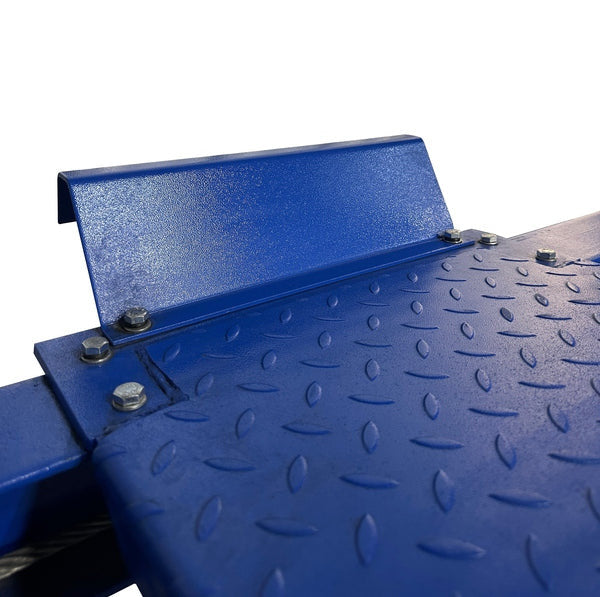

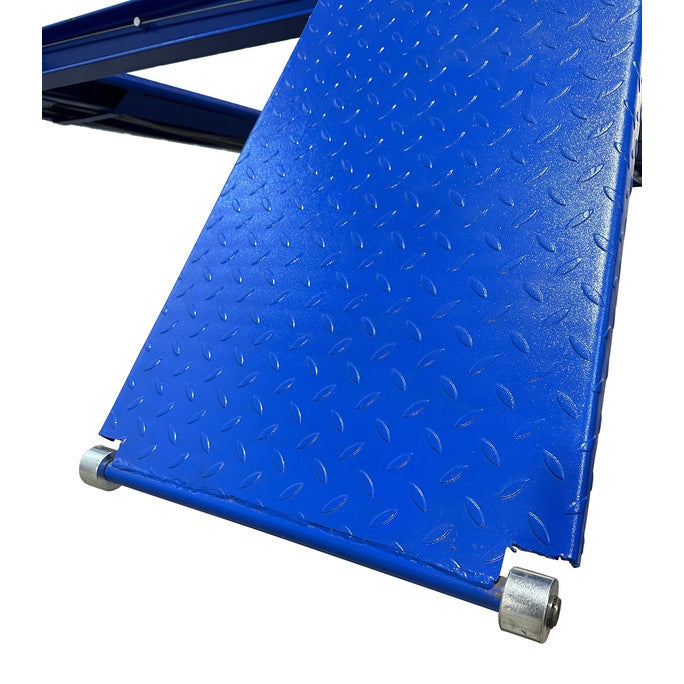

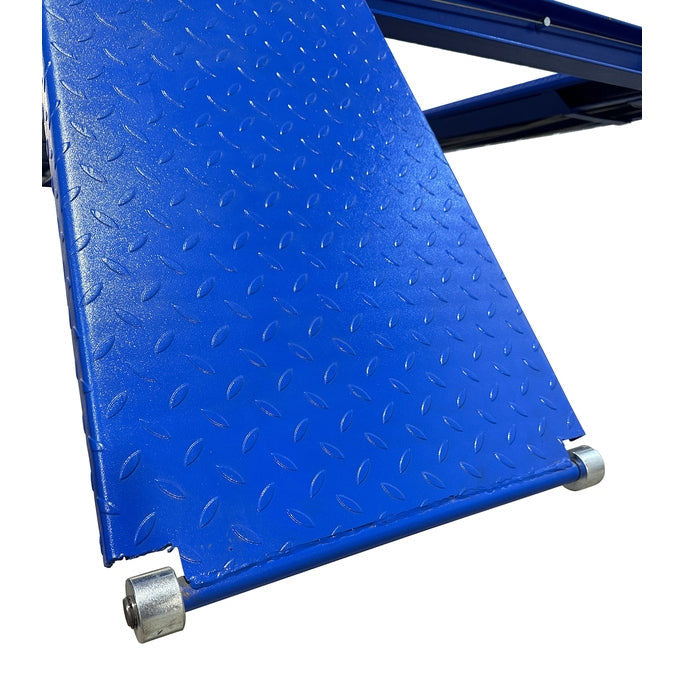

Tuxedo 12,000 lb Four Post Lift - Cable Driven *Jack sold separately Cable driven four post lift provides 12,000 lb. lifting capacity. No power beam; Cylinder stowed under single piece diamond plate track. Simple, lever release system and redundant safety locks. Features 12,000 lbs Capacity Cable Driven 176 max wheelbase Single Point Manual Lock Release Adjustable Locking Positions Slack Cable Safety No Overhead Obstructions Powder Coat Finish Specifications Lift Model FP12K-K Capacity 12,000 lbs. Overall Length w/Ramp 232-1/2" Overall Width(Without Power Unit) 123" Overall Width (With Power Unit) 134" Overall Height 84" Max Rise Height 67-1/2" Min Height 7" Width Between Posts 105" Length Between Posts 177" Width Between Runways 36-1/2" Width Of Runways 19" Max Wheelbase 167" Ramp Length 35" Max. Clearance Under Runway 63-1/4" Drive-Thru Clearance 87-1/2" Base Plate 11" X 11" Power Requirement 220V - 20 Amp - 1PH Ship Weight 2,255 lbs. Min Bay Size 15" x 23" Recommended RAJ-8K & Tuxedo Lift Combo

Tuxedo FP12K-K 12,000 lb Four Post Lift - Cable Driven$5,650.00
